Brand Name : BOSEAN
Model Number : K-600
Certification : FCC, CE, RoHS, SIL, ATEX
Place of Origin : China
MOQ : Negotiation
Price : $40-$300
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Credit Card
Supply Ability : 100units per day
Delivery Time : 1-7 days
Packaging Details : gas detection system will be packed with the export standard carton package or aluminum box or as per customer require
Name : Single Gas Detector
Gas sampling method : Gas pump sampling
Response time : T<30s
Accuracy : ≦±5% F.S.
Protection category : IP65
Sensor life : 2 years
Charging time : 6h~8h
Explosion-proof grade : Ex ib IIBT4 Gb
PH3 Single Gas Detector
Introduction
K-600 portable gas detector with built-in pump is a new intelligent gas detector, which adopts an advanced integrated circuit, with standard intelligent level design technology, and proprietary digital analog hybrid communication technology. The detector is of excellent sensitivity and repeatability, which makes it very easy to use and maintain. Thus greatly meets the safety requirements of industrial sites with high reliability. The detector is made of high-strength engineering plastics, compound non-slip rubber, which is of high strength and good hand feeling. what's more, the detector is water-proof, dust-proof and explosion-proof. It is widely used in petroleum, chemical, environmental, metallurgy, refining, gas transmission and distribution, biochemical medicine, agricultural and other industries.
Details
Parameters
Gas sampling method | Gas pump sampling |
Accuracy | ≦±5% F.S. |
Response Time | ≦30s |
Indication | LCD displays real-time and system status; LED, audio and vibration alert for gas leakage, fault and low voltage, pump working state. |
Working environment | -20℃~50℃, <95%RH (no dew) |
Power Source | DC3.7V Li-on battery, 3200mAh |
Charging time | 6h~8h |
Working time | ≧8h continuously (without alarming) |
Gas Sensor Life | 2 years |
Explosion-proof grade | Ex ib IIBT4 Gb |
Protection Grade | IP65 |
Weight | Appr. 400g (with battery) |
Dimensions | 130mm×67mm×30mm(L × W × H) |
gas | Range | Detection Accuracy | 90% Response Time | Minimun Readout | Alarm Set Point Low/High |
PH3 | 0-2000ppm | ±5%(F.S) | ≦25s | 0.01ppm | 0.3/5ppm |
O2 | 0-30%vol | ±5%(F.S) | ≦15s | 0.10% | 19.5%/23.0% |
EX | 0-100%LEL | ±5%(F.S) | ≦5s | 1%LEL | 25.0%/50.0%LEL |
CO | 0-1000ppm | ±5%(F.S) | ≦25s | 1ppm | 50ppm/100ppm |
CO2 | 0-5000ppm | ±5%(F.S) | ≦25s | 1ppm | 1000ppm/2000ppm |
H2S | 0-100ppm | ±5%(F.S) | ≦30s | 1ppm | 10ppm/20ppm |
NO2 | 0-20ppm | ±5%(F.S) | ≦25s | 0.1ppm | 3ppm/10ppm |
NO | 0-250ppm | ±5%(F.S) | ≦60s | 1ppm | 25ppm/50ppm |
SO2 | 0-100ppm | ±5%(F.S) | ≦30s | 0.1ppm | 2ppm/10pppm |
CL2 | 0-20ppm | ±5%(F.S) | ≦30s | 0.1ppm | 1ppm/10ppm |
NH3 | 0-100ppm | ±5%(F.S) | ≦50s | 1ppm | 25ppm/50ppm |
H2 | 0-1000ppm | ±5%(F.S) | ≦60s | 1ppm | 50ppm/10ppm |
HCN | 0-50ppm | ±5%(F.S) | ≦200s | 0.1ppm | 10ppm/20ppm |
HCL | 0-20ppm | ±5%(F.S) | ≦60s | 0.1ppm | 5ppm/10ppm |
CH4 | 0-100%LEL | ±5%(F.S) | ≦5s | 1%LEL | 25.0%/50.0%LEL |
Details
![]() |

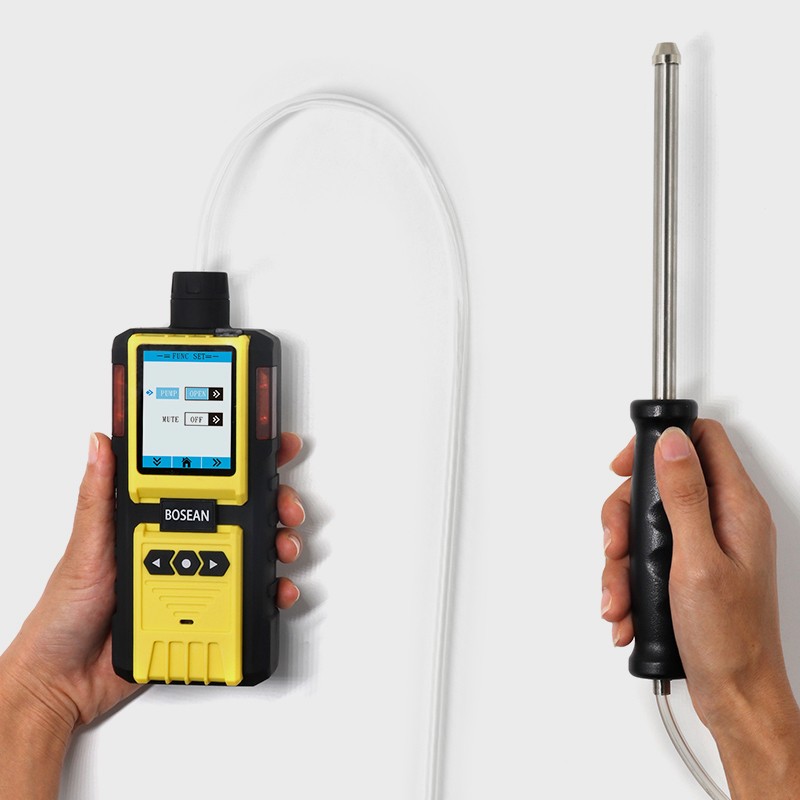

PH3 Single Gas Detector Images |
